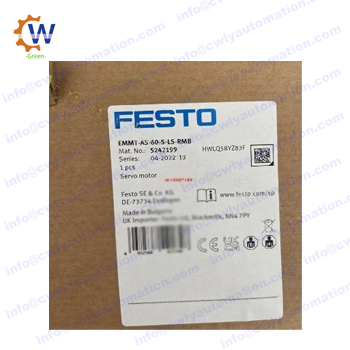

Festo EMMT-AS-60-S-LS-RMB 5242199 In Stock

EMMT-AS-60-S-LS-RMB 5242199 Total mass moment of inertia of output

0.257 kgcm2

Nominal torque

0.6 Nm

Nominal rotary speed

3000 1/min

Email: [email protected]

Tel: +86 13667121125   whatsapp/ vk/ telegram also available

Company: Hongkong CW Green Tech Company

More Parameters about EMMT-AS-60-S-LS-RMB 5242199:

Ambient temperature

-15 °C ... 40 °C

Note on ambient temperature

Up to 80°C with derating of -1.5% per degree Celsius

Max. installation height

4000 m

Note on max. installation height

As of 1,000 m: only with derating of -1.0% per 100 m

Storage temperature

-20 °C ... 70 °C

Relative air humidity

0 - 90%

Conforms to standard

IEC 60034

Temperature class as per EN 60034-1

F

Max. winding temperature

155 °C

Rating class as per EN 60034-1

S1

Temperature monitoring

Digital motor temperature transmission via EnDat? 2.2

Motor type to EN 60034-7

IM B5

IM V1

IM V3

Mounting position

optional

Degree of protection

IP40

Note on degree of protection

IP40 for motor shaft without rotary shaft seal

IP65 for motor shaft with rotary shaft seal

IP67 for motor housing including connection components

Concentricity, coaxiality, axial runout to DIN SPEC 42955

N

Balance quality

G 2.5
