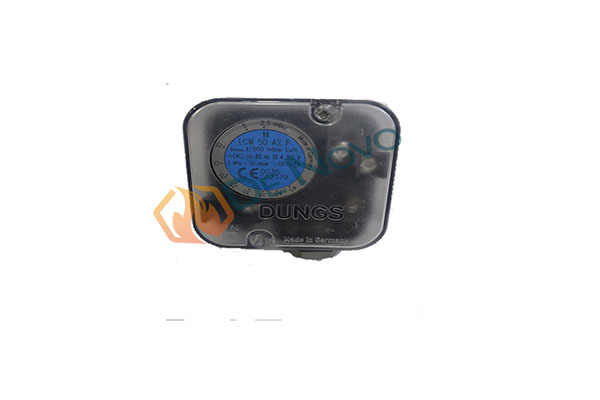

DUNGS AIR PRESSURE SWITCH LGW 50 A2 P

Technical description
The differential pressure switches LGW…A2… are adjustable differential pressure switchesas per EN 1854 for automatic burner controls. Suitable for switching a circuit on, off or over on changes in actual pressure value relative to the set reference value. The reference value (switching point) is adjusted on a setting wheel provided with a scale. On LGW…A2P: test button integrated in lower part as standard.

Application

Differential pressure monitoring in firing, ventilation and air-conditioning systems. Suitable for air, flue and exhaust gases and other non-aggressive gases as differential pressure switches; not suitable for industrial combustion gases.

<sub>Technical data 1mbar = 100 Pa = 0,1 kPa ≈ 10 mm WS 1 Pa = 0,01 mbar ≈ 0,1 mm WS

Type                    Version [AG-M-V9]             Setting range                      Switching difference [mbar]                                                                                 [mbar]                       min.    /       max.
pressure switch      LGW 50 A2P            2,5 - 50   ± 0,75    ± 15 %                        ≤ 1</sub>
